Jun 30, 2023 2:35 PM UTC
Solved

Workflow Profile Active Property

I have a data adapter with a query that lists all workflow profiles in the application. I need to exclude from that list all the inactive profiles (Profile Active=False)

Where is this property in the database table?

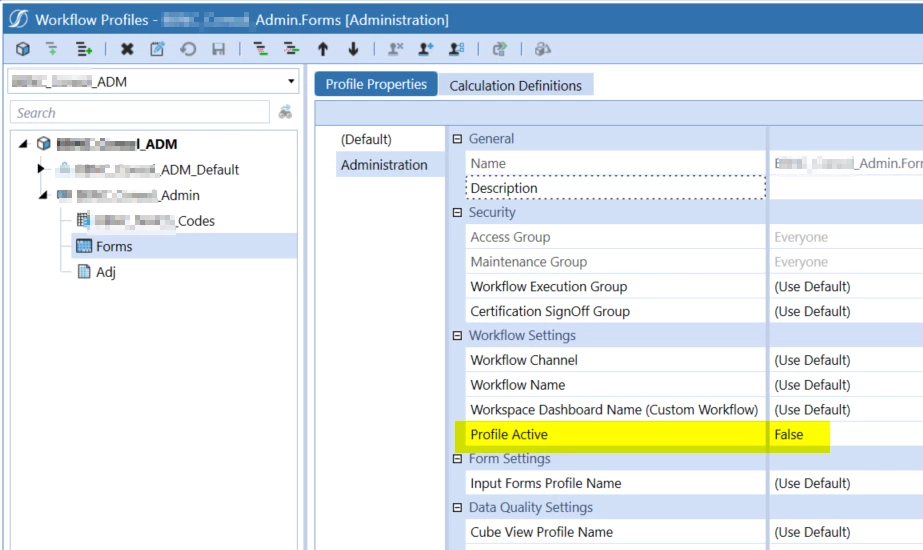

2023-06-30 10_27_21-OneStream.png

NicolasArgenteAnswer
Veteran
Jun 30, 2023 5:56 PM UTC

Gidon_Albert In your case above, if the scenario is not in the list then it is disabled. It will leave this table.

Take the code below and paste it into your data adaptor.
Test like this : 9 is a Variance scenario. Try there to disable and enable. You will see the result of the query. It will disapear.
Obgiously also chagne the name of the ProfileName.

SELECT
  WorkflowProfileHierarchy.ProfileKey
 ,WorkflowProfileAttributes.ProfileKey
 ,WorkflowProfileHierarchy.ProfileName
 ,WorkflowProfileHierarchy.CubeName
 ,WorkflowProfileHierarchy.ProfileType
 ,WorkflowProfileAttributes.ScenarioTypeID
 ,WorkflowProfileAttributes.AttributeIndex
 ,WorkflowProfileAttributes.ProfileAttributeValue
FROM dbo.WorkflowProfileHierarchy
INNER JOIN dbo.WorkflowProfileAttributes
  ON WorkflowProfileHierarchy.ProfileKey = WorkflowProfileAttributes.ProfileKey
WHERE WorkflowProfileHierarchy.ProfileName LIKE '%Task_A1%'
AND WorkflowProfileAttributes.ScenarioTypeID = 9


 Later you can simplify this query to only get the profile names...

View in thread

6 replies

NicolasArgente
Veteran
Jun 30, 2023 3:28 PM UTC

Hey Gibon!
Hope you are fine since the bootcamp! 🙂
You would also need the scenarios right? As you can have the same WF profile activated for BUDGET and disabled for ACTUALS. How would you handle that?

Gidon_AlbertAuthor
Contributor
Jun 30, 2023 4:22 PM UTC

Hi Nick,

Great to see you on OneCommunity!

You are correct. We need to account for the ScenarioTypeID, Property 1300 in the WorkflowProfileAtribute table is delimited by ScenarioTypeID so I suspect it stores the Profile Active status. However, values in that property don't change when I change the status in the Workflow Profile.

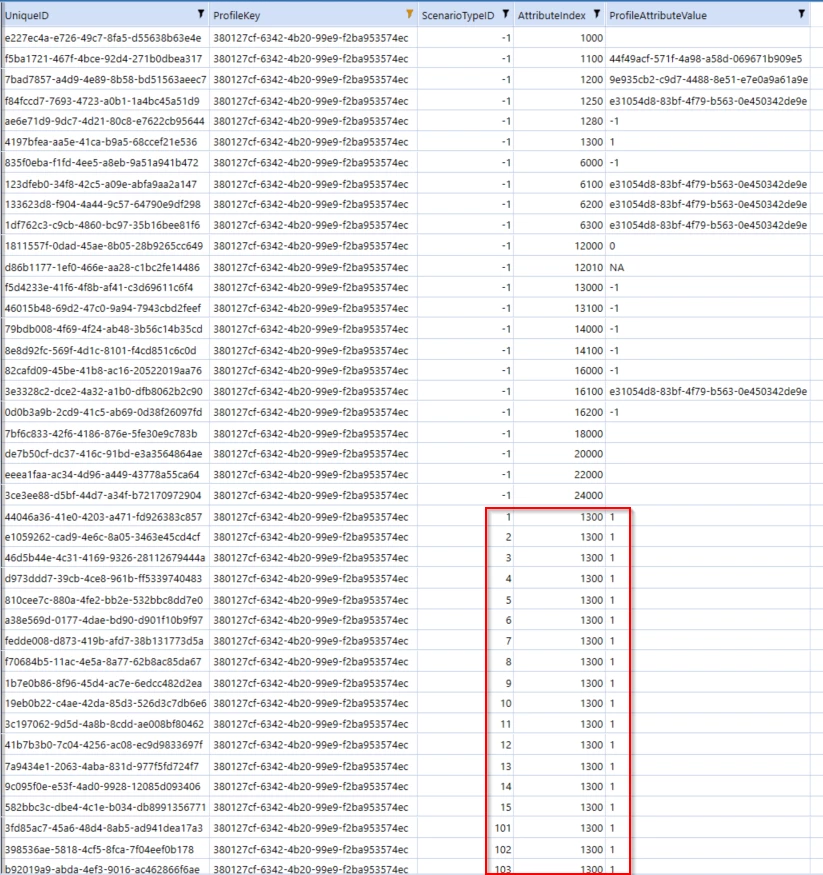

2023-06-30 11_48_20-OneStream.png

Gidon_AlbertAuthor
Contributor
Jun 30, 2023 5:13 PM UTC

Thinking about it more, this isn't it. All the properties are ScenarioType specific. Property 1300 must be controlling something else.

NicolasArgenteAnswer
Veteran
Jun 30, 2023 5:56 PM UTC

Gidon_Albert In your case above, if the scenario is not in the list then it is disabled. It will leave this table.

Take the code below and paste it into your data adaptor.
Test like this : 9 is a Variance scenario. Try there to disable and enable. You will see the result of the query. It will disapear.
Obgiously also chagne the name of the ProfileName.

SELECT
  WorkflowProfileHierarchy.ProfileKey
 ,WorkflowProfileAttributes.ProfileKey
 ,WorkflowProfileHierarchy.ProfileName
 ,WorkflowProfileHierarchy.CubeName
 ,WorkflowProfileHierarchy.ProfileType
 ,WorkflowProfileAttributes.ScenarioTypeID
 ,WorkflowProfileAttributes.AttributeIndex
 ,WorkflowProfileAttributes.ProfileAttributeValue
FROM dbo.WorkflowProfileHierarchy
INNER JOIN dbo.WorkflowProfileAttributes
  ON WorkflowProfileHierarchy.ProfileKey = WorkflowProfileAttributes.ProfileKey
WHERE WorkflowProfileHierarchy.ProfileName LIKE '%Task_A1%'
AND WorkflowProfileAttributes.ScenarioTypeID = 9


 Later you can simplify this query to only get the profile names...

    Gidon_AlbertAuthor
    Contributor
    Jun 30, 2023 7:05 PM UTC

    Got it.

    So if ProfileAttributeValue for AttributeIndex 1300 is 1, the profile is active for the respective ScenarioTypeID.

    It looks like:

    • ScenarioTypeID 0 = Actual
    • SceanrioTypeID 1 = Budget
    • ScenarioTypeID 9 = Variance

    Not sure about all the other types.

      NicolasArgente
      Veteran
      Jun 30, 2023 8:04 PM UTC

      -5, "All"
      -1, "Unknown"
      0, "Actual"
      1, "Budget"
      2, "Flash"
      3, "Forecast"
      4, "FXModel"
      5, "History"
      6, "Model"
      7, "Plan"
      8, "Tax"
      9, "Variance"
      10, "Administration"
      11, "Control"
      12, "LongTerm"
      13, "Operational"
      14, "Sustainability"
      15, "Target"
      101, "ScenarioType1"
      102, "ScenarioType2"
      103, "ScenarioType3"
      104, "ScenarioType4"
      105, "ScenarioType5"
      106, "ScenarioType6"
      107, "ScenarioType7"
      108, "ScenarioType8"

      Please give some kudos if it helps. 🙂
