Hi,

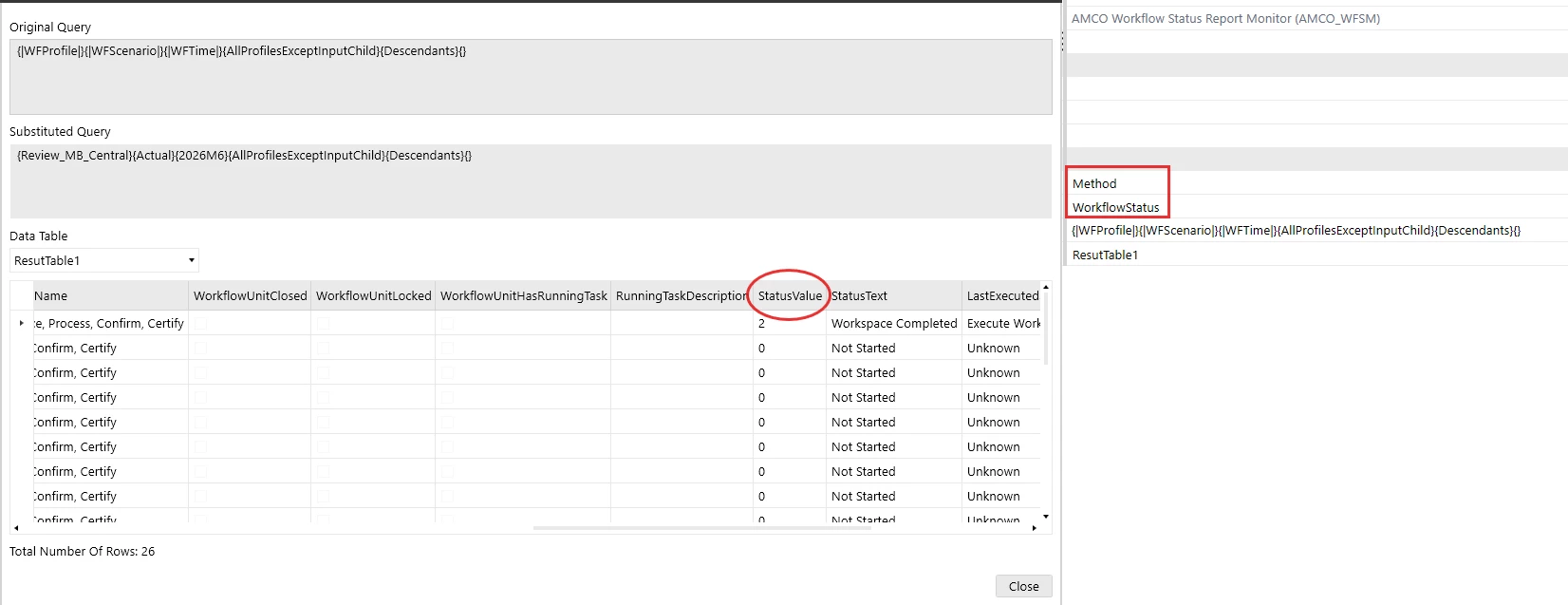

Does anyone know where the StatusValue shown in the WorkflowStatus method is actually stored?

I'm trying to locate the source of the workflow status data. I'd expect there to be a table in the Application tables that contains this column. Does anyone know which one it is?

Best answer by RomanBannyy

Oh, I see.
Try TaskflowStepInstances
Something like this for pure workflows:

SELECT H.ProfileName as [WF Name], M.Name as [Scenario], T.Wtk as [TimeId], T.InstanceStatus
FROM TaskflowStepInstances T
LEFT JOIN WorkflowProfileHierarchy H
ON T.Wfk = H.ProfileKey
LEFT JOIN Member M
ON T.Wsk = M.MemberId

upd: Step keys are in SharedConstants.WorkflowKeys.Steps

4 replies

RomanBannyy
Member
August 28, 2026

Hello Andrea,

I believe you mean public enum WorkflowStatusTypes, which you can access directly in your code and is likely not stored in App tables.


var sb = new StringBuilder();
foreach (var status in Enum.GetValues<WorkflowStatusTypes>())
    sb.AppendLine($"{status} - {(int)status}");

throw new Exception(sb.ToString());



Output:


NotExecuted - 0
InProcess - 1
Completed - 2
HasError - 10
NoStatus - 20
Unknown - -1


AndreaFAuthor
Expert
August 28, 2026

Hi ​@RomanBannyy , just to clarify I'm not looking for the list of possible status values, but for a table that stores each workflow/workflow step along with its current status. I'd expect something like: workflow_id=xxx, status=0; workflow_id=yyy, status=2; etc.

RomanBannyyAnswer
Member
August 28, 2026

Oh, I see.
Try TaskflowStepInstances
Something like this for pure workflows:

SELECT H.ProfileName as [WF Name], M.Name as [Scenario], T.Wtk as [TimeId], T.InstanceStatus
FROM TaskflowStepInstances T
LEFT JOIN WorkflowProfileHierarchy H
ON T.Wfk = H.ProfileKey
LEFT JOIN Member M
ON T.Wsk = M.MemberId

upd: Step keys are in SharedConstants.WorkflowKeys.Steps

Haritha_Dev
Member
August 28, 2026

Hi Andrea,

There's no table with a StatusValue column — it's not stored anywhere; it's computed live by the Workflow Engine.

That value only exists as output of the WorkflowStatus Method Query itself — it's generated at runtime by combining lock state + running task state + step completion, not read from a column.

This matches OneStream's own docs: for an open workflow, hierarchy/status info is read from memory (cache), not the database.

Note: use the WorkflowStatus Method Query or BRApi.Workflow.Status.GetWorkflowStatus() — that's the only way to get it, since it does not persist

Thanks!
Haritha
