How to Update UI Workflow Status When Run Via Extensibility Rule

  • June 6, 2023
  • 2 replies
  • 0 views

We have several workflows that involve many steps.  The requirement is to have a button in a dashboard that runs the entire sequence or sequences.  This is coded and works.

The problem is when running workflows using a BR, the UI status doesn't update unless the refresh button is clicked.  This action is not practical when operating in a dashboard because it closes the dashboard.

How can I update the UI workflow status indications from the business rule?

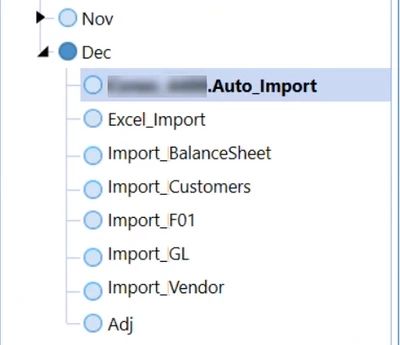

I need to go from this:

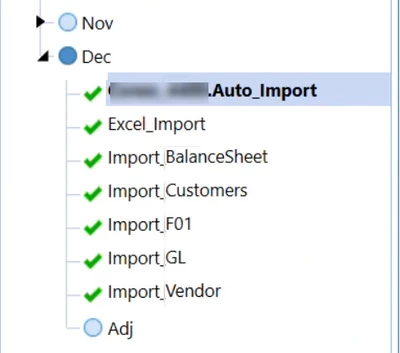

To this:


Without clicking this:




Or leaving the dashboard.

    2 replies

    N
    NicolasArgente
    Veteran
    June 7, 2023

    Hi RobbSalzmann
    Have you tried that :



    'Can be called from a dashboard extender business rule:
Dim selectionResult As New XFSelectionChangedTaskResult()
selectionResult.WorkflowWasChangedbyBusinessRule = True
Return selectionResult

    Source : Accepted Code Samples
    Thanks

      RobbSalzmann
      RobbSalzmannAuthor
      Legend
      June 7, 2023

      Thanks NicolasArgente .  Yes, I have the following, with no effect on updating the UI:



        Dim selectionChangedTaskResult As XFSelectionChangedTaskResult = Nothing
...

   selectionChangedTaskResult = New XFSelectionChangedTaskResult With {
   	.IsOK = True,
	.WorkflowWasChangedByBusinessRule = True,
	.PovWasChangedByBusinessRule = True,
	.ChangeSelectionChangedUIActionInDashboard = True
	.ChangeSelectionChangedUIActionInDashboard = XFSelectionChangedUIActionType.Refresh
   }

...

Return selectionChangedTaskResult





        MikeG
        MikeG
        Contributor
        June 7, 2023

        I was able to get this to work.  There are API calls to complete each step along the way, Import > Validate > Load (or Process) or also Confirm steps.  See if you can grab snippets of the code below to support your specific rule and solution:



        selectionChangedTaskResult.WorkflowWasChangedByBusinessRule = True
        selectionChangedTaskResult.IsOK = True
        selectionChangedTaskResult.ShowMessageBox = True
        '---other code
        '----set status
        If Not wfStatus.GetOverallStatus().Equals(WorkflowStatusTypes.Completed) Then

        'Complete workspace
        BRApi.Workflow.Status.SetWorkflowStatus(si, currentWF, StepClassificationTypes.Workspace, WorkflowStatusTypes.Completed, "Workspace Completed", "", "User clicked complete workflow", Guid.Empty)
        'Complete import
        Dim objLoadTransformProcessInfo As LoadTransformProcessInfo = BRApi.Import.Process.ExecuteParseAndTransform(si, currentWF, "", Nothing, TransformLoadMethodTypes.Replace, SourceDataOriginTypes.FromDirectConnection, False)
        'Complete validate
        Dim objValidationTransformationProcessInfo As ValidationTransformationProcessInfo = BRApi.Import.Process.ValidateTransformation(si, currentWF, True)
        Dim objValidateIntersectionProcessInfo As ValidateIntersectionProcessInfo = BRApi.Import.Process.ValidateIntersections(si, currentWF, True)
        'Complete Load
        Dim objLoadCubeProcessInfo As LoadCubeProcessInfo = BRApi.Import.Process.LoadCube(si, currentWF)

        End If 'Not Completed
        Return selectionChangedTaskResult
          RobbSalzmann
          RobbSalzmannAuthor
          Legend
          June 7, 2023

          Thanks MikeG .  Can you show the instantiation and initialization of wfStatus and currentWF please?

          I'm a bit confused by the BRApi call to set the status of the workflow to completed before running the steps below it?

          Is the line
          "BRApi.Workflow.Status.SetWorkflowStatus(si, currentWF, StepClassificationTypes.Workspace, WorkflowStatusTypes.Completed, "Workspace Completed", "", "User clicked complete workflow", Guid.Empty)"
          the part that compels your workspace UI to update with the completed workflow?

            MikeG
            MikeG
            Contributor
            June 7, 2023

            I created a Workspace that essentially is a summary of all the Workflow tasks I want to automate.  In your instance, you would not need to complete the 'Workspace' complete step, you could delete that or comment it out, and in your solution the first step in your Workflow to complete would be the 'Import' task/step.
