Passing variables from DataAdapter to CubeView

Hi ​@Mikki

Sorry I thought sharing the other post would help you resolve

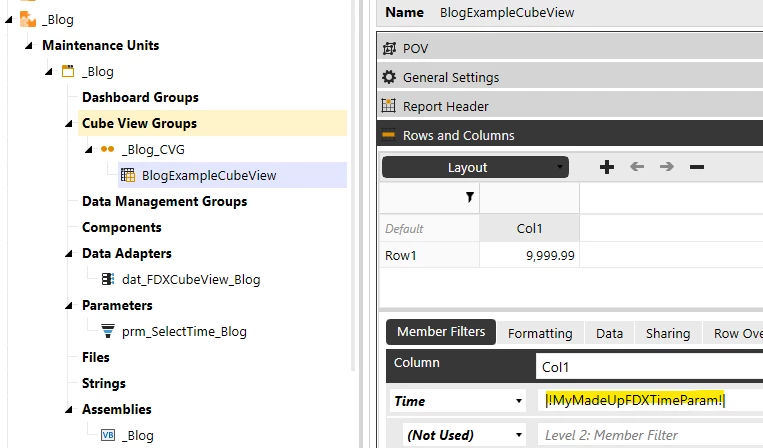

Below is an example of overriding the Time Value in a CubeView using a Parameter.  This works with real parameters and namevaluepairs created by us.

Example1 (FDX specific “Parameter”)

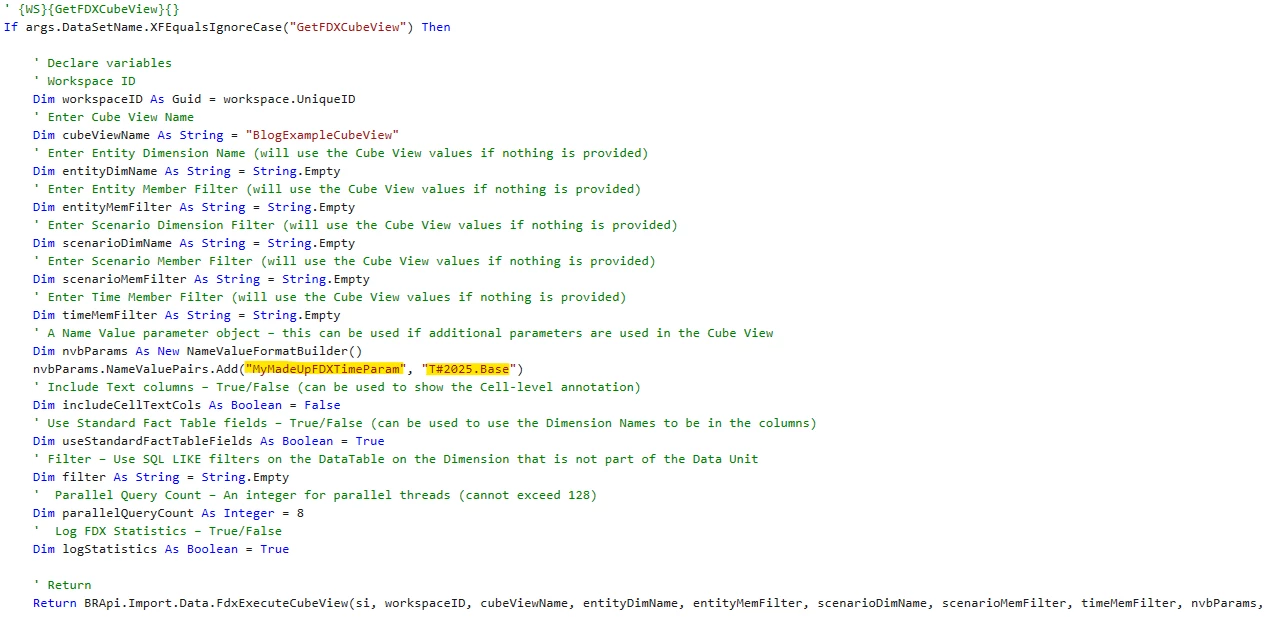

This enables us to supply a value for the parameter at runtime using the NameValueFormatBuilder object e.g.

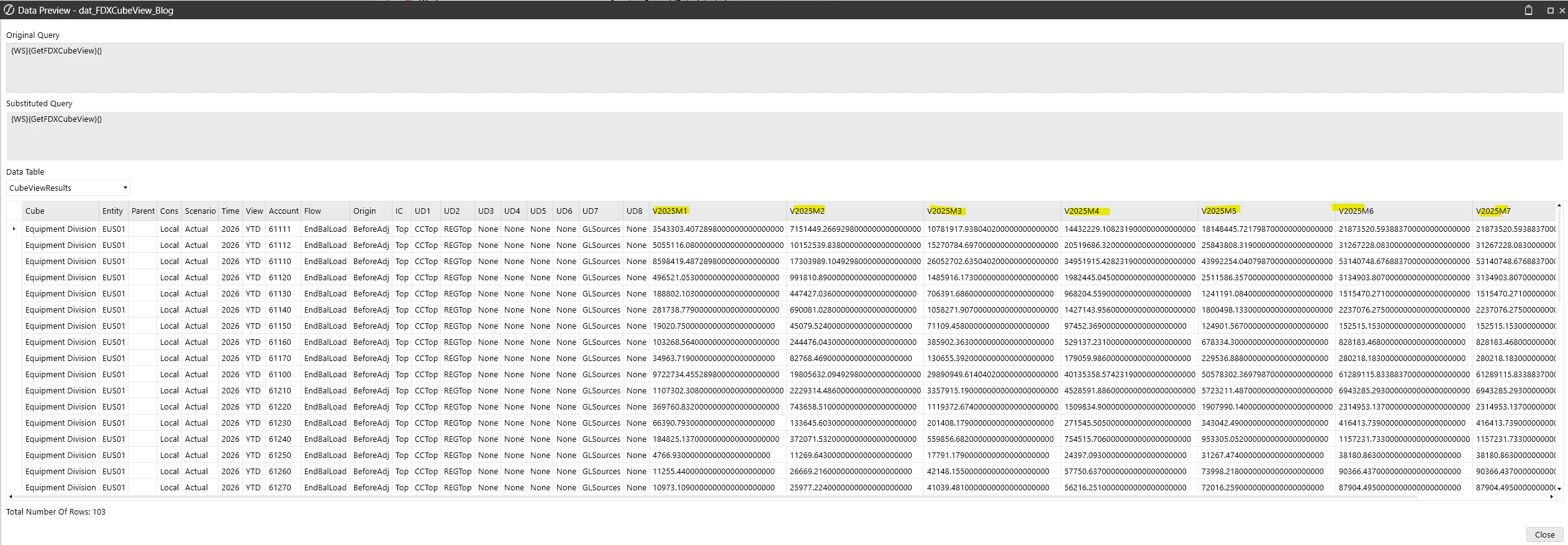

So this would return T#2025.Base. e.g.

Please note if not using a real parameter, the CubeView will not execute on its own since that parameter value is being supplied in code, only via Data Adapter invocation)

Example2 (Workspace Parameter)

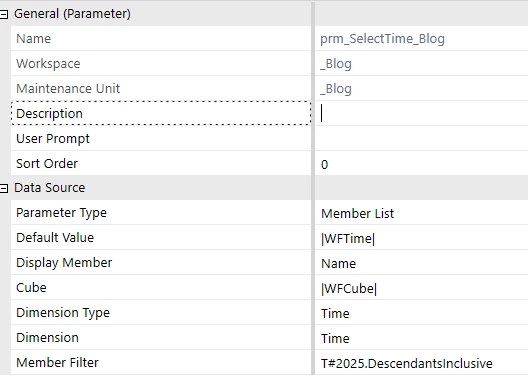

Similarly if I use a real Parameter e.g. prm_SelectTime_Blog

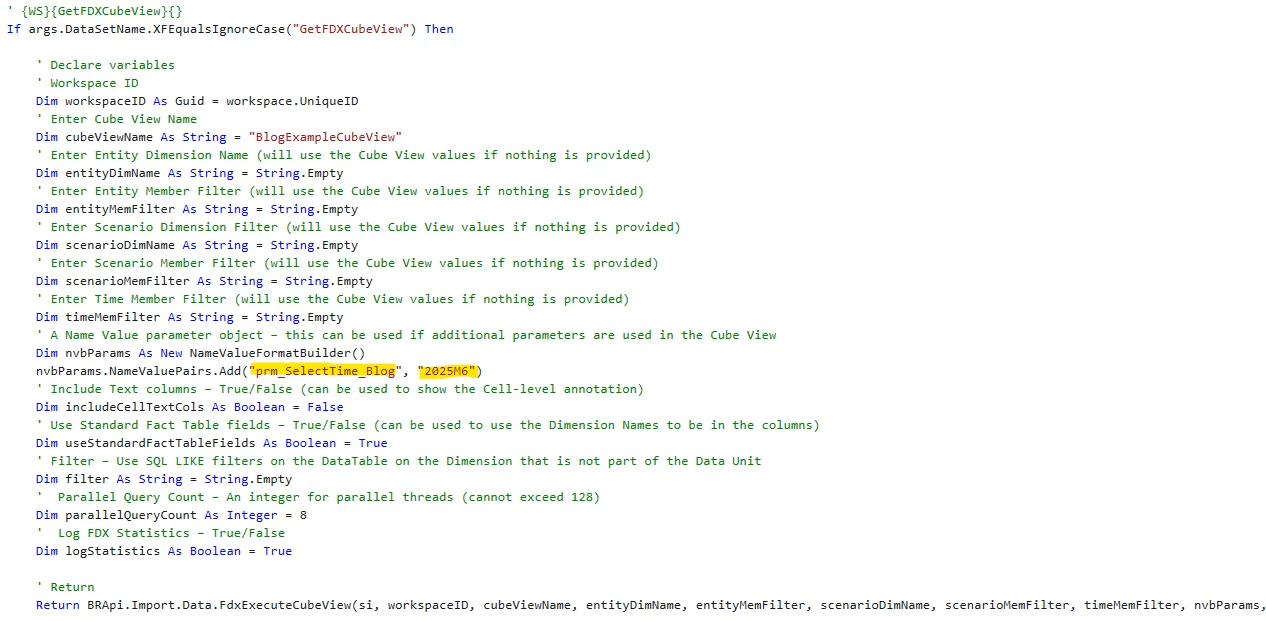

I can update it in exactly the same way in my business rule using NameValueFormatBuilder

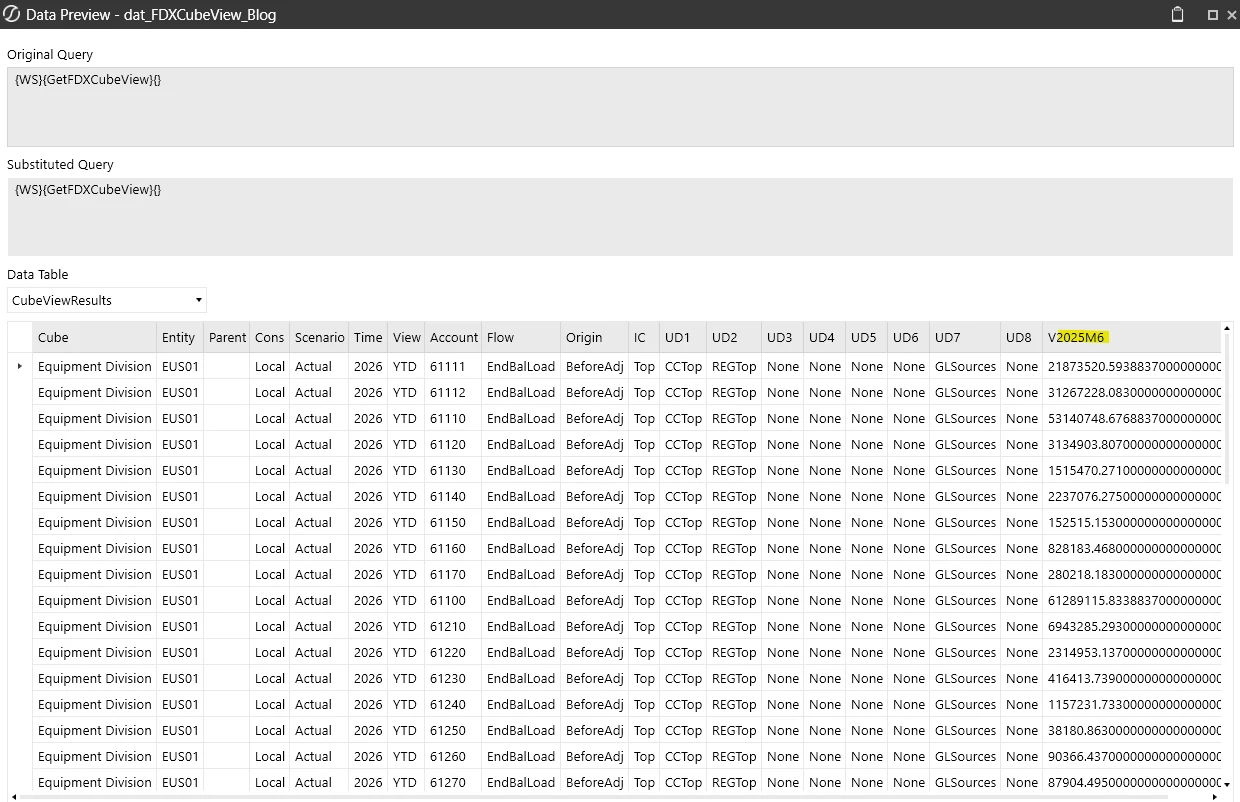

This will return T#2025M6. for example

If using a real parameter then you need to ensure one of the values you are supplying is the same as a value the parameter would normally invoke

Example code below

' {WS}{GetFDXCubeView}{CVName=[|!prm_SelectCubeView_FDX!|],prm_SelectEntity_FDX=|!prm_SelectEntity_FDX!|,prm_SelectTime_FDX=[|!prm_SelectTime_FDX!|]}
If args.DataSetName.XFEqualsIgnoreCase("GetFDXCubeView") Then

	' Declare variables
	' Workspace ID
	Dim workspaceID As Guid = workspace.UniqueID
	' Enter Cube View Name
	Dim cubeViewName As String = args.NameValuePairs.XFGetValue("CVName")
	' Enter Entity Dimension Name (will use the Cube View values if nothing is provided)
	Dim entityDimName As String = String.Empty
	' Enter Entity Member Filter (will use the Cube View values if nothing is provided)
	Dim entityMemFilter As String = String.Empty
	' Enter Scenario Dimension Filter (will use the Cube View values if nothing is provided)
	Dim scenarioDimName As String = String.Empty
	' Enter Scenario Member Filter (will use the Cube View values if nothing is provided)
	Dim scenarioMemFilter As String = String.Empty
	' Enter Time Member Filter (will use the Cube View values if nothing is provided)
	Dim timeMemFilter As String = String.Empty
	' A Name Value parameter object – this can be used if additional parameters are used in the Cube View
	Dim nvbParams As New NameValueFormatBuilder()
	nvbParams.NameValuePairs.Add("YourParamName1", "YourParamValue1"))
	nvbParams.NameValuePairs.Add("YourParamName2", "YourParamValue2"))
	' Include Text columns – True/False (can be used to show the Cell-level annotation)
	Dim includeCellTextCols As Boolean = False
	' Use Standard Fact Table fields – True/False (can be used to use the Dimension Names to be in the columns)
	Dim useStandardFactTableFields As Boolean = True
	' Filter – Use SQL LIKE filters on the DataTable on the Dimension that is not part of the Data Unit
	Dim filter As String = String.Empty
	'  Parallel Query Count – An integer for parallel threads (cannot exceed 128)
	Dim parallelQueryCount As Integer = 8
	'  Log FDX Statistics – True/False
	Dim logStatistics As Boolean = True

	' Return
	Return BRApi.Import.Data.FdxExecuteCubeView(si, workspaceID, cubeViewName, entityDimName, entityMemFilter, scenarioDimName, scenarioMemFilter, timeMemFilter, nvbParams, includeCellTextCols, useStandardFactTableFields, filter, parallelQueryCount, logStatistics)

End If

Also you might want to watch this Tech Talk where we go through similar examples for each FDX method July Tech Talks Replay now Available! | Community

Here are additional examples (there is a CubeView specific example) Question: Where can we find examples of FDX Connectors? | Community

Hope this helps

Sam
