Move file from File Explorer to File Share

I need to create a business rule that will move a file from a user's folder in File Explorer to the server's File Share. I am using the BRApi.FileSystem.GetFile method to successfully read the file, but I am unable to write the file to the server. I believe my issue is with the XFFileInfo parameters. I am not sure how many parameters to provide and what the value to provide for the folderFullName parameter. Here is my current code:

'Get the file
Dim sourceXFFileEx As New XFFileEx
sourceXFFileEx = BRApi.FileSystem.GetFile(si, FileSystemLocation.ApplicationDatabase, sourceDir & "/" & sourceFile,True,True)

'Save the file but this part is not working
Dim targetFileDataInfo As New XFFileInfo(FileSystemLocation.FileShare, fileName, ??)
Dim targetFileData As New XFFile(targetFileDataInfo, String.Empty, sourceXFFileEx.XFFile.ContentFileBytes)
BRApi.FileSystem.InsertOrUpdateFile(si, targetFileData)



manthangandhiAnswer
Contributor
Mar 4, 2024 6:27 AM UTC

Hi Jrodgers,

You can try the follwoing apprach to move the file from the user's public directory to File Share > applications > Groups > Everyone directory. I hope this is what you're looking for.

'Get the file
 Dim sourceXFFileEx As New XFFileEx
 Dim sourceDir As String = "Documents/Users/" & si.UserName.Replace(" ","")
 Dim sourceFile As String = "test_move.txt"
 sourceXFFileEx = BRApi.FileSystem.GetFile(si, FileSystemLocation.ApplicationDatabase, sourceDir & "/" & sourceFile,True,True)

'Save the file but this part is not working
 Dim tgt = brapi.FileSystem.GetFolder(si, FileSystemLocation.FileShare, "Applications/"& si.AppName.Replace(" ", String.Empty) & "\Groups\Everyone\").XFFolder.ParentFullName
 Dim targetFileDataInfo As New XFFileInfo(FileSystemLocation.FileShare, sourceFile, tgt )
 Dim targetFileData As New XFFile(targetFileDataInfo, String.Empty, sourceXFFileEx.XFFile.ContentFileBytes)
 BRApi.FileSystem.InsertOrUpdateFile(si, targetFileData)



View in thread

4 replies

manthangandhiAnswer
Contributor
Mar 4, 2024 6:27 AM UTC

Hi Jrodgers,

You can try the follwoing apprach to move the file from the user's public directory to File Share > applications > Groups > Everyone directory. I hope this is what you're looking for.

'Get the file
 Dim sourceXFFileEx As New XFFileEx
 Dim sourceDir As String = "Documents/Users/" & si.UserName.Replace(" ","")
 Dim sourceFile As String = "test_move.txt"
 sourceXFFileEx = BRApi.FileSystem.GetFile(si, FileSystemLocation.ApplicationDatabase, sourceDir & "/" & sourceFile,True,True)

'Save the file but this part is not working
 Dim tgt = brapi.FileSystem.GetFolder(si, FileSystemLocation.FileShare, "Applications/"& si.AppName.Replace(" ", String.Empty) & "\Groups\Everyone\").XFFolder.ParentFullName
 Dim targetFileDataInfo As New XFFileInfo(FileSystemLocation.FileShare, sourceFile, tgt )
 Dim targetFileData As New XFFile(targetFileDataInfo, String.Empty, sourceXFFileEx.XFFile.ContentFileBytes)
 BRApi.FileSystem.InsertOrUpdateFile(si, targetFileData)



    Employee - Sage
    JackLacavaEmployee - Sage
    Employee - Sage
    Mar 4, 2024 9:23 AM UTC

    One thing people often don't realize, is that most OneStream classes are actually documented in the automatically-generated helper tree - but they might be a couple of level deeper than the starting tree.

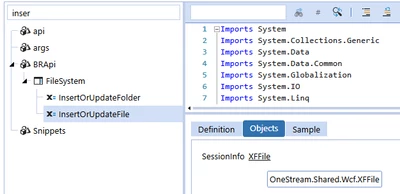

    In this case, we will pull up InsertOrUpdateFile from the tree. Because its definition includes custom OneStream-specific classes, if we click on the Objects tab, we will get such classes listed - but those are hyperlinks!

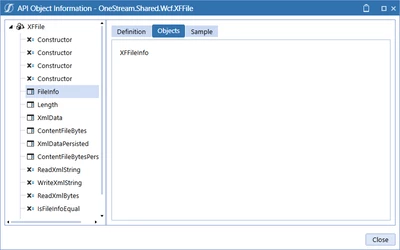

    If you click on XFFile, you get the full documentation on that class, including all its constructors and methods. Here we see there is a FileInfo property, and again we can look in the Objects tab...

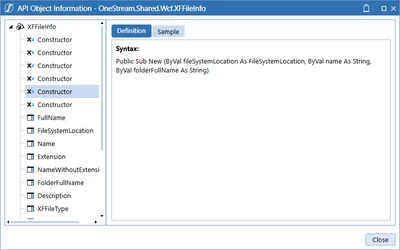

    ... and clicking on the hyperlink gives us all the goods on XFFileInfo, including a fairly straightforward constructor:


    This technique should be enough to look up details for 80-90% of OneStream objects. Don't expect much descriptive text (although you will find occasionally find some, in the Definition tab), but the names are usually fairly explanatory.

    I hope that helps!

      SandeepSingh
      Newcomer
      Oct 27, 2024 4:05 PM UTC

      Hi

      Need some help please. My requirement is opposite, i want to move the file from File Share to File Explorer. Based on above response i created a extender BR as below. I am trying to move the file From Application/ApplicationName/DM/Export/Username To File Folder Documents//Public/Reports_Books.

      when i am running the script i get this message -  1) Business Rule execution failed. Unable to load class 'OneStream.BusinessRule.Extender.SGA_FIle_Move.MainClass'.

      ===============================================================================================

      Namespace OneStream.BusinessRule.Extender.SGA_File_Move
      Public Class MainClass
      Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As ExtenderArgs) As Object
      Try
      Select Case args.FunctionType

      Case Is = ExtenderFunctionType.ExecuteDataMgmtBusinessRuleStep
      'Get the file
      Dim sourceXFFileEx As New XFFileEx
      Dim sourceDir = brapi.FileSystem.GetFolder(si, FileSystemLocation.FileShare, "Applications/"& si.AppName.Replace(" ", String.Empty) & "\DataManagement\SandeepSingh\").XFFolder.ParentFullName
      Dim sourceFile As String = "SGAData.csv"
      sourceXFFileEx = BRApi.FileSystem.GetFile(si, FileSystemLocation.ApplicationDatabase, sourceDir & "/" & sourceFile,True,True)

      'Save the file but this part is not working
      'Dim tgt = brapi.FileSystem.GetFolder(si, FileSystemLocation.FileShare, "Applications/"& si.AppName.Replace(" ", String.Empty) & "\Groups\Everyone\").XFFolder.ParentFullName
      Dim tgt As String = "Documents//Public/Reports_Books/"
      Dim targetFileDataInfo As New XFFileInfo(FileSystemLocation.FileShare, sourceFile, tgt )
      Dim targetFileData As New XFFile(targetFileDataInfo, String.Empty, sourceXFFileEx.XFFile.ContentFileBytes)
      BRApi.FileSystem.InsertOrUpdateFile(si, targetFileData)


      End Select

      Return Nothing
      Catch ex As Exception
      Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
      End Try
      End Function
      End Class
      End Namespace
      ===================================================================================================
      Employee - Guide
      KarlTEmployee - Guide
      Employee - Guide
      Oct 28, 2024 11:08 AM UTC

      That error message sounds like a more fundamental issue to the business rule - is "SGA_FIle_Move" the name of the business rule?
