Hello All, OS experts - Greetings !

I am trying to complete the following code to extract the year and month from a given date. To help with validation and debugging, I've enabled BRAPI.ErrorLog.LogMessage to display the variable outputs in the error log.

However, for some reason, it is not displaying any values in the error log. I would greatly appreciate any insights into what might be wrong with the code. Here is the code I am working with:

Dim vDate As String = args.NameValuePairs.XFGetValue("Date")
' e.g., "01/01/2025" (MM/DD/YYYY format)

' Log the retrieved Date for debugging
BRAPI.ErrorLog.LogMessage(si, "vDate: " & vDate)

' Ensure vDate is not null or empty before proceeding
If Not String.IsNullOrEmpty(vDate) Then
' Extract the year (last 4 characters) from vDate and convert to an integer
Dim vYear As Integer = CInt(vDate.Substring(6, 4))
BRAPI.ErrorLog.LogMessage(si, "vYear: " & vYear)

' Extract the month (first 2 characters) from vDate and convert to an integer
Dim vMonth As Integer = CInt(vDate.Substring(0, 2))
BRAPI.ErrorLog.LogMessage(si, "vMonth: " & vMonth)
Else
BRAPI.ErrorLog.LogMessage(si, "vDate is null or empty!")
End If

Thank you in advance.

D

DanielWillis

Contributor

Are you saying you are not even getting "vDate is null or empty!"? If you are not getting any of these logging lines from the above sample code in your error log (and there are no error messages in log) then I don't think your business rule is even getting to this section of code.

Edit: or are you saying you're getting error messages but vDate is blank? If so then I would suggest it isn't being passed in properly.

M

MarcusH

Expert

You can use DateTime.TryParse like this:

Dim vDate As String = args.NameValuePairs.XFGetValue("Date")
Dim parsedDate As DateTime

' Parse the date string to a DateTime object
If DateTime.TryParse(vDate, parsedDate) Then
    ' Extract the month and year
    Dim month As Integer = parsedDate.Month
    Dim year As Integer = parsedDate.Year

    BRAPI.ErrorLog.LogMessage(si, $"Month: [{month}], Year: [{year}]")
Else
    BRAPI.ErrorLog.LogMessage(si, $"Can't parse date [{vDate}]")
End If

K

KR2012Author

Newcomer

Thank you @DanielWillis and @MarcusH.

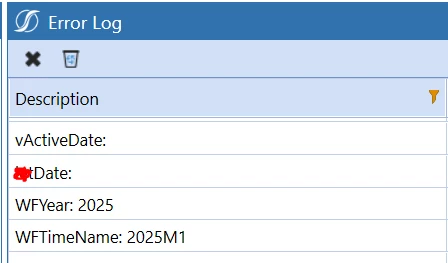

Yes, I am receiving the output from the 'else' condition, which states 'Date is null or empty'. However, the Date field does have a value in the record, and it seems to be ignoring this and still executing the 'else' condition.

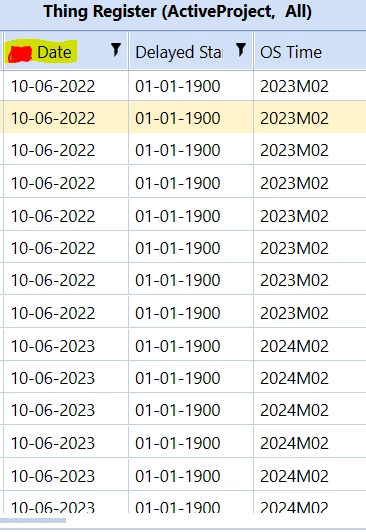

I have highlighted the column we intend to use for the logic. Below are the record details from the Thing Register, along with the error log for further clarity.

D

DanielWillis

Contributor

So how are you passing the value into your business rule? That seems to be the problem. I think you really need to give the full context. The screenshots were a step in the right direction.

K

KR2012Author

Newcomer

Hi, DanielWillis - Thank you for your reply.

The business wants to calculate costs based on the project start date and compare it to the workflow time.

the business rule (payout process) will assess the project's initiation date (LetDate) and calculate the mobilization amounts of 2%, 3%, and 7% for LetMonth +1, LetMonth +2, and LetMonth +3, respectively. This applies only to projects that are expected to last 75 days or more.

Processing Logic: The mobilization calculation applies to active projects and follows these conditions:

Case 1: If the number of workdays is 0, the "Left to Pay" amount should be evenly spread over 18 months.
Case 2: If the project has more than 75 workdays, the mobilization calculations will be as follows based on the LetMonth.

For a project starting in May with 200 workdays, the mobilization schedule is:

If the forecast is for May:

June: 2%
July: 3%
August: 7%

If the forecast is for June:

June: 3%
July: 7%

If the forecast is for July:

July: 7%

If the forecast is for August or any later months:

Mobilization is not applied.

The project start date is sourced from the Thing Planning Register.

When I run the "calculate after update" process, it is throwing an error. To troubleshoot, I enabled debug mode and discovered that the date is not being read properly as mentioned in the earlier post. here is the code for this function for your reference.

============================================

Public Function GetActiveDriverValue(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As DashboardStringFunctionArgs, ByRef driver As String, ByRef entityMember As String) As String

Try

'Entity is always E#UNFD for drivers

Dim tlpHelper As New OneStream.BusinessRule.DashboardStringFunction.TLP_ParamHelper.MainClass

Dim regID As String = args.NameValuePairs.XFGetValue("RegID")

Dim field As String = args.NameValuePairs.XFGetValue("Field")

Dim account As String = args.NameValuePairs.XFGetValue("Account")

Dim period As Decimal = args.NameValuePairs.XFGetValue("Period")

Dim Entity As String = "UNFD"

' Start - Mobilization logic

'Dim WFTimeName As String = args.NameValuePairs.XFGetValue("WFTimeName").ToString.Replace("'","")

Dim WFTimeName As String = args.NameValuePairs.XFGetValue("WFTimeName").ToString.Replace("'","")

BRAPI.ErrorLog.LogMessage(si, "WFTimeName: " & WFTimeName)

'Dim WFYear As String = args.NameValuePairs.XFGetValue("WFYear").ToString.Replace("'","")

Dim WFYear As String = args.NameValuePairs.XFGetValue("WFYear").ToString.Replace("'","")

BRAPI.ErrorLog.LogMessage(si, "WFYear: " & WFYear)

' End - Mobilization logic

Dim scenarioName As String = ScenarioDimHelper.GetNameFromId(si, si.WorkflowClusterPk.ScenarioKey)

Dim timeID As Integer = BRApi.Finance.Members.GetMemberId(si, DimType.Time.Id, WFTimeName)

' START - Mobilization logic update

'Dim DriverTime As String = WFTimeName

Dim DriverTime As String = WFTimeName

BRAPI.ErrorLog.LogMessage(si, "DriverTime: " & DriverTime)

' END - Mobilization logic update

' START- Mobilization Logic update

' Dim letDate As String = args.NameValuePairs.XFGetValue("letDate") '09/01/2023

' '2023M01

' BRAPI.ErrorLog.LogMessage(si, "vLetDate: " & letDate)

' Dim letYear As Integer = CInt(letDate.Substring(0,4))

' BRAPI.ErrorLog.LogMessage(si, "vLetDate: " & letDate)

' Dim letMonth As Integer = CInt(letDate.Substring(4,2))

' BRAPI.ErrorLog.LogMessage(si, "vletMonth: " & letMonth)

' Retrieve the letDate value from the NameValuePairs

'Dim letDate As String = args.NameValuePairs.XFGetValue("letDate")

'' e.g., "09/01/2023" (MM/DD/YYYY format)

'' Log the retrieved letDate

''BRAPI.ErrorLog.LogMessage(si, "vLetDate: " & letDate)

'' Extract the year (first 4 characters) from letDate and convert to an integer

'Dim letYear As Integer = CInt(letDate.Substring(6, 4))

'BRAPI.ErrorLog.LogMessage(si, "LetYear: " & letYear)

'' Extract the month (characters at position 1 and 2) from letDate and convert to an integer

'Dim letMonth As Integer = CInt(letDate.Substring(0, 2))

'BRAPI.ErrorLog.LogMessage(si, "LetMonth: " & letMonth)

Dim vActiveDate As String = args.NameValuePairs.XFGetValue("ActiveDate")

' e.g., "01/01/2025" (MM/DD/YYYY format)

' Log the retrieved Date for debugging

BRAPI.ErrorLog.LogMessage(si, "vActiveDate: " & vActiveDate)

Dim letDate As String = args.NameValuePairs.XFGetValue("Let Date")

' e.g., "01/01/2025" (MM/DD/YYYY format)

' Log the retrieved Date for debugging

BRAPI.ErrorLog.LogMessage(si, "letDate: " & letDate)

Dim vletDate As Integer = args.NameValuePairs.XFGetValue("Let Date")

' e.g., "01/01/2025" (MM/DD/YYYY format)

' Log the retrieved Date for debugging

BRAPI.ErrorLog.LogMessage(si, "letDate: " & letDate)

' Ensure vDate is not null or empty before proceeding

If Not String.IsNullOrEmpty(letDate) Then

' Extract the year (last 4 characters) from vDate and convert to an integer

Dim letYear As Integer = CInt(letDate.Substring(6, 4))

BRAPI.ErrorLog.LogMessage(si, "letYear: " & letYear)

' Extract the month (first 2 characters) from vDate and convert to an integer

Dim letMonth As Integer = CInt(letDate.Substring(0, 2))

BRAPI.ErrorLog.LogMessage(si, "letMonth: " & letMonth)

Else

BRAPI.ErrorLog.LogMessage(si, "letDate is null or empty!")

End If

' END- Mobilization Logic update

'Dim value As Decimal = args.NameValuePairs.XFGetValue("Amount")

Dim calcPer As Decimal = args.NameValuePairs.XFGetValue("calcPer")

Dim LeftToPay As Decimal = args.NameValuePairs.XFGetValue("LeftToPay")

Dim workDays As Decimal = args.NameValuePairs.XFGetValue("WorkDays")

Dim presPer As Decimal = args.NameValuePairs.XFGetValue("PresPer")

'Change on 13 Jan by Arpit

Dim outPer As Integer = args.NameValuePairs.XFGetValue("outPer")

Dim delayedFlag As Boolean = If(args.NameValuePairs.XFGetValue("delayFlag").Equals("'Delay'"), True, False)

'Change on 5th feb by Arpit

'Dim MobDictionary As New Dictionary(Of String, Integer)

Dim mobCounter As Integer = Nothing

Dim amountPerDay As Decimal = 0

'The Account member can be be passed in as a parameter if this is being called from another procedure, so check for that first

Dim accountMember As String = Nothing

Dim monthlyAmount As Decimal = 0

Dim ratio1 As Decimal = args.NameValuePairs.XFGetValue("mobRatio1")

Dim ratio2 As Decimal = args.NameValuePairs.XFGetValue("mobRatio2")

Dim ratio3 As Decimal = args.NameValuePairs.XFGetValue("mobRatio3")

Dim month As String = scenarioName.Substring(8)

Dim year As String = scenarioName.Substring(0,4)

Dim cumulativeSum As Decimal = tlpHelper.GetSumCum(si, globals, api, args)

'Get the Cube name to pull the driver from

'TO DO: consider passing cube name or referencing through BRAPI

Dim cubeName As String = args.NameValuePairs.XFGetValue("cubeName").ToString.Replace("'",Nothing)

Dim cubeNamePOV As String = args.SubstVarSourceInfo.PovCube.Name.ToString

Dim ud1Member As String = args.NameValuePairs.XFGetValue("ud1Member").ToString.Replace("'",Nothing)

Dim ud2Member As String = args.NameValuePairs.XFGetValue("ud2Member").ToString.Replace("'",Nothing)

Dim ud3Member As String = args.NameValuePairs.XFGetValue("ud3Member").ToString.Replace("'",Nothing)

Dim ud4Member As String = args.NameValuePairs.XFGetValue("ud4Member").ToString.Replace("'",Nothing)

Dim ud5Member As String = args.NameValuePairs.XFGetValue("ud5Member").ToString.Replace("'",Nothing)

Dim ud6Member As String = args.NameValuePairs.XFGetValue("Category").ToString.Replace("'",Nothing)

Dim ud7Member As String = args.NameValuePairs.XFGetValue("ud7Member").ToString.Replace("'",Nothing)

Dim ud8Member As String = args.NameValuePairs.XFGetValue("ud8Member").ToString.Replace("'",Nothing)

If Entity = Nothing Then Entity = "None"

If accountMember = Nothing Then accountMember = "ProjectWorkdays"

If ud1Member = Nothing Then ud1Member = "None"

If ud2Member = Nothing Then ud2Member = "None"

If ud3Member = Nothing Then ud3Member = "None"

If ud4Member = Nothing Then ud4Member = "None"

If ud5Member = Nothing Then ud5Member = "None"

If ud6Member = Nothing Then ud6Member = "None"

If ud7Member = Nothing Then ud7Member = "None"

If ud8Member = Nothing Then ud8Member = "None"

'Identify periods for calculation

''' Months 1-12 = Year 1

''' Months 13-24 = Year 2

''' Months 25-36 = Year 3

''' Months 37-48 = Year 4

''' Months 49-60 = Year 5

'driverTime = WFYear & "M" & calcPer

'Calendar

'Dim startMonth As Integer = TXcalendarMap.Item(month) + calcPer '10

'Dim startMonth As Integer = month + calcPer 'removed and replaced startMonth with calcPer - 2/2 AK

Dim calcYear,calcPeriod As Integer

calcYear = Math.Truncate(calcPer/12)

calcPeriod = calcPer Mod 12

If(calcPeriod <> 0) Then

driverTime = WFYear + calcYear & "M" & calcPeriod

Else

driverTime = WFYear + calcYear -1 & "M12"

End If

'Build the driver member string to retrieve work days by category

'Cb#TXDOT:E#UNFD:P#?:C#Local:S#Actual:T#2022M1:V#Periodic:A#WorkdaysPerMonth:F#None:O#Forms:I#None:U1#None:U2#None:U3#None:U4#None:U5#None:U6#None:U7#None:U8#None

Dim mbrStringWDMth As String

mbrStringWDMth = "E#" & Entity

mbrStringWDMth = mbrStringWDMth & ":C#Local"

mbrStringWDMth = mbrStringWDMth & ":S#Actual" '& scenarioName

mbrStringWDMth = mbrStringWDMth & ":T#" & driverTime

mbrStringWDMth = mbrStringWDMth & ":V#Periodic"

mbrStringWDMth = mbrStringWDMth & ":A#WorkdaysPerMonth"

mbrStringWDMth = mbrStringWDMth & ":F#None:O#Forms:I#None"

mbrStringWDMth = mbrStringWDMth & ":U1#None"

mbrStringWDMth = mbrStringWDMth & ":U2#" & ud2Member

mbrStringWDMth = mbrStringWDMth & ":U3#" & ud3Member

mbrStringWDMth = mbrStringWDMth & ":U4#" & ud4Member

mbrStringWDMth = mbrStringWDMth & ":U5#" & ud5Member

mbrStringWDMth = mbrStringWDMth & ":U6#None"

mbrStringWDMth = mbrStringWDMth & ":U7#" & ud7Member

mbrStringWDMth = mbrStringWDMth & ":U8#" & ud8Member

'BRAPI.ErrorLog.LogMessage(si, "Driver POV: " & mbrStringWDMth)

' 'GetDataCell and Return Driver Value: Workdays by Month

Dim workDaysMonth As Integer

workDaysMonth = BRApi.Finance.Data.GetDataCellUsingMemberScript(si, "TXDOT", mbrStringWDMth).DataCellEx.DataCell.CellAmount

Dim mobAmt As Decimal = 0

Dim counter As Integer = globals.GetInt32Value(regID)

'Brapi.ErrorLog.LogMessage(si,$" counter is {counter}")

If counter = -1 Then

'Brapi.ErrorLog.LogMessage(si,$" counter inside -1")

globals.SetInt32Value(regID, 1)

counter = 1

End If

Dim remAmt As Decimal = 0

If LeftToPay > 0 Then

' Handle case when workDays = 0 (spread over 18 months)

If workDays = 0 Then

remAmt = LeftToPay - cumulativeSum

monthlyAmount = LeftToPay / 18

End If

' Handle different months and workdays greater than 75

If letMonth >= 1 and And workDays > 75 Then

For i As Integer = 1 To 3

If letMonth = i Then

If counter = 1 Then

globals.SetInt32Value(regID, 2)

mobAmt = remAmt * ratio1

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

ElseIf counter = 2 Then

globals.SetInt32Value(regID, 3)

mobAmt = remAmt * ratio2

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

ElseIf counter = 3 Then

globals.SetInt32Value(regID, 4)

mobAmt = remAmt * ratio3

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

ElseIf counter = 4 Then

If monthlyAmount > remAmt Then

Return remAmt

Else

Return monthlyAmount

End If

Next i

End If

' Handle cases for letMonth >= 4

If letMonth >= 4 Then

remAmt = LeftToPay - cumulativeSum

amountPerDay = LeftToPay / workDays

monthlyAmount = amountPerDay * workDaysMonth

If monthlyAmount > remAmt Then

Return remAmt

Else

Return monthlyAmount

End If

Else

'Standard Calculation

remAmt = LeftToPay - cumulativeSum

amountPerDay = LeftToPay / workDays

monthlyAmount = amountPerDay * workDaysMonth

'Brapi.ErrorLog.LogMessage(si,$" remAmt is {remAmt} , amountPerDay is {amountPerDay} and monthlyAmount is {monthlyAmount}")

If (outPer = -3) Then

If (counter = 1) Then

globals.SetInt32Value(regID,2)

mobAmt = remAmt * ratio3

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

Else If (counter = 2)

If monthlyAmount > remAmt Then

Return remAmt

Else

Return monthlyAmount

End If

Else If(outPer = -2) Then

'Brapi.ErrorLog.LogMessage(si,$" Outper is -2 , counter is {counter} and {RegID}")

'Brapi.ErrorLog.LogMessage(si,$" counter is {counter}")

If (counter = 1) Then

globals.SetInt32Value(regID,2)

mobAmt = remAmt * ratio2

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

Else If (counter = 2) Then

globals.SetInt32Value(regID,3)

mobAmt = remAmt * ratio3

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

Else If (counter = 3)

If monthlyAmount > remAmt Then

Return remAmt

Else

Return monthlyAmount

End If

Else If(outPer >= -1) Then

'Brapi.ErrorLog.LogMessage(si,$" Outper is -1 , counter is {counter} and {RegID}")

'Brapi.ErrorLog.LogMessage(si,$" counter is {counter}")

If(counter = 1) Then

globals.SetInt32Value(regID,2)

mobAmt = remAmt * ratio1

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

Else If (counter = 2) Then

globals.SetInt32Value(regID,3)

mobAmt = remAmt * ratio2

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

Else If (counter = 3) Then

globals.SetInt32Value(regID,4)

mobAmt = remAmt * ratio3

If (remAmt < monthlyAmount) Then

Return remAmt

Else If(mobAmt > monthlyAmount) Then

Return mobAmt

Else

Return monthlyAmount

End If

Else If (counter = 4)

If monthlyAmount > remAmt Then

Return remAmt

Else

Return monthlyAmount

End If

Else

If monthlyAmount > remAmt Then

Return remAmt

Else

Return monthlyAmount

End If

Return Nothing

Catch ex As Exception

Throw ErrorHandler.LogWrite(si, New XFException(si, ex))

End Try

End Function

#End Region

==========================

Sign up

Login with SSO

Login to the community

Login with SSO

Scanning file for viruses.

This file cannot be downloaded
