Retrieve Parent property

  • January 27, 2022
  • 2 replies
  • 0 views

SOURCE: ONESTREAM CHAMPIONS

Hi All,

I am trying to find a way to create a report that shows the Entity and the Parent in a column next to it. I tried to do this by using the functions =XFGetMemberProperty() and =XFGetRelationshipProperty(), both returns an error when I try.

=XFGetRelationshipProperty(“Entity”,"",B15,“Parent”,"","") returns “#ERROR: Parent”
=XFGetRelationshipProperty(“Entity”,B16,"",“Parent”,"","") returns “#ERROR: Member Name”
=XFGetRelationshipProperty(“Entity”,B17,"",“Parent”,“ACTUAL”,“2021M1”) returns “#ERROR: Member Name”
=XFGetRelationshipProperty(“Entity”,B4,B5,“Parent”,"","") returns “#ERROR: Parent”

=XFGetMemberProperty(“Entity”,B13,“Parent”,“Finance”,“Actual”,“2021M1”) returns “#ERROR: Finance”
=XFGetMemberProperty(“Entity”,B14,“Parent”,"",“Actual”,“2021M1”) returns “#ERROR: Parent”
=XFGetMemberProperty(“Entity”,B14,“Parent”,"",“Actual”,“2021M1”) returns “#ERROR: Parent”
=XFGetMemberProperty(“Entity”,B11,“Parent”,"","",“2021M1”) returns “#ERROR: Parent”
=XFGetMemberProperty(“Entity”,B12,“Parent”,"","","") returns “#ERROR: Parent”

as a reference, I tried the same function on “currency” and that works.
=XFGetMemberProperty(“Entity”,B21,“Currency”,"","","") returns “EUR”

I am assuming that the complexity lies in the fact that the parent could vary in time (?) .

I hope some body can help on this thanks.

Phil





2 replies

D
OneStream Employee
Dominic_AOneStream Employee
OneStream Employee
January 27, 2022

Hi Philip,
If you have the parent then it should be possible to retrieve a property.
This is a Text1 property of a member in Golfstream:

https://discourse-static.influitive.net/uploads/db_8467a788_7b9e_45b8_8b6c_d37e1967220d/original/1X/c41753101d0d6f6b8f6603346619869f5fe0948e.png
image.png1322×44 2.92 KB


The Actual and 2019M1 can be “” and “”, if there is a default.



As you can see from this example, the property name drives which property is retrieved:

https://discourse-static.influitive.net/uploads/db_8467a788_7b9e_45b8_8b6c_d37e1967220d/original/1X/7af4a80d40ecc5cef56435ddfec02a4af408baf9.png
image.png1304×45 2.99 KB


The response can be True/False.
The get relationship property returns relationship information such as e.g. Parent Sort Order:

https://discourse-static.influitive.net/uploads/db_8467a788_7b9e_45b8_8b6c_d37e1967220d/original/1X/7727788b19da97838639b7b8298157cc8bcac196.png
image.png1392×97 5.17 KB


It is possible to build member list business rules based on information about parent-child, ancestors and descendants, if the members cannot be derived with the built in member filter functions.

P
plingAuthor
Newcomer
January 27, 2022

Hi Dominic,

thanks for the reply. Actually I am trying to create a similar overview as in your last screenshot. Namely:
Column A Parent Entity
Column B Child Entity

How could I generate a list like that in Onestream? My approach in the post was through a combination of quickview and the function xfgetmember/relationshipproperty, but not sure whether this is the right direction.

M
MichaelSBrokaw
Newcomer
January 27, 2022

Philip:

In our instance, we built a DynamicCalc formula in UD8 dimension to get the parent of a UD4 member.

This could be modified to get an Entity’s parent based on its relationship properties such as Parent Sort Order, Text1 to Text 8.

' Derive Industry for selected Entity.

If      api.View.IsAnnotationType(api.Pov.View.MemberId) _
    And api.Members.IsBase(api.Pov.EntityDim.DimPk, _
                           api.Members.GetMemberId(api.Pov.Entity.DimTypeId, _
                                                   "PLConsMgmt"), _
                           api.Pov.Entity.MemberId) _
Then

    Dim Result As String = String.Empty

    ' Customer set as Entity Text4 property by Scenario/Time.
    Dim Customer As String = api.Entity.Text(api.Pov.Entity.MemberId, _
                                             4, _
                                             api.Pov.Scenario.MemberId, _
                                             api.Pov.Time.MemberId)
    If Not String.IsNullOrEmpty(Customer) Then

        ' Customer is member of Customers UD4 dimension.
        Dim CustomerId As Integer = api.Members.GetMemberId(DimType.UD4.Id, _
                                                            Customer)
        If Not CustomerId = -1 Then

            ' Get Customer's Parent.
            Dim oParents As List(Of Member) = api.Members.GetParents(api.Pov.UD4Dim.DimPk, _
                                                                     CustomerId, _
                                                                     False)
            If oParents.Count > 0 Then
                For i As Integer = 0 To oParents.Count - 1

                    ' Industry is child of UD4 Customers and parent of Customer.
                    If api.Members.IsChild(api.Pov.UD4Dim.DimPk, _
                                           api.Members.GetMemberId(api.Pov.UD4.DimTypeId, _
                                                                   "Customers"), _
                                           api.Members.GetMemberId(api.Pov.UD4.DimTypeId, _
                                                                   oParents.Item(i).Name)) _
                    Then
                        Result = oParents.Item(i).Name
                        Exit For
                    Else
                        If api.Members.IsBase(api.Pov.UD4Dim.DimPk, _
                                              api.Members.GetMemberId(api.Pov.UD4.DimTypeId, _
                                                                      "Customers"), _
                                              CustomerId) _
                        Then

                            ' Customer not assigned to an industry.
                            Result = "NoIndustry"
                        Else

                            ' UD4 member is not a customer.
                            Return Nothing
                        End If
                    End If
                Next
            Else

                ' Member has no parents.
                Result = "#ERROR: Orphaned Customer"
            End If
        Else

            ' Entity Text4 property does not identify a valid customer.
            Result = "#ERROR: Invalid Customer"
        End If
    Else

        ' Entity Text4 property is blank. Not assigned to a customer.
        Result = "NoIndustry"
    End If

    ' Return result setting cell status as NoData for suppression.
    Dim oDataCellEx As DataCellEx = New DataCellEx()
    oDataCellEx.DataCell.CellStatus = New DataCellStatus(False)
    oDataCellEx.DataCellAnnotation = Result
    Return oDataCellEx
End If

Return Nothing

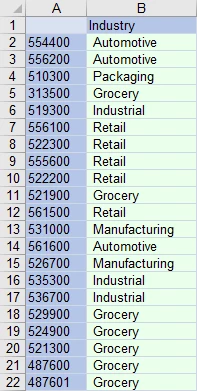

In a quick view, we are able to list entities with its assigned industry.




1




S
Sai_Maganti
Newcomer
January 27, 2022

We use a Dashboard Data Set BR to extract base entities and immediate parent. Check out if this is of any help.

Namespace OneStream.BusinessRule.DashboardDataSet.Entity_Parent_List
	Public Class MainClass
		Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As DashboardDataSetArgs) As Object
			Try
				Select Case args.FunctionType

					Case Is = DashboardDataSetFunctionType.GetDataSetNames
						Dim names As New List(Of String)()
						names.Add("CustomData")
						Return names

					Case Is = DashboardDataSetFunctionType.GetDataSet
						If args.DataSetName.XFEqualsIgnoreCase("CustomData") Then
						'Build a lookup of members and descriptions using a member script
							Using dbConnFW As DbConnInfo = BRAPi.Database.CreateFrameworkDbConnInfo(si)
								Using dbConnApp As DbConnInfo = BRAPi.Database.CreateApplicationDbConnInfo(si)
									'Get the Members using member script
									Dim ms As String = "E#[Your Entity Top].Base" 'replace with your top entity for base list
									Dim objDim As OneStream.Shared.Wcf.Dim = DimsWcf.GetDimUsingName(dbConnFW, dbConnApp, "Entities")
									Dim members As List(Of MemberInfo) = MetadataWcf.GetMembersUsingFilter(dbConnFW, dbConnApp, Nothing, si.WorkflowClusterPk, si.PovDataCellPk, objDim.DimPk, ms, 0, Nothing, Nothing, True, False, True)

									'Build a dictionary of members and descriptions
									Dim dt As New DataTable()
									dt.Columns.Add("Entity", GetType(String))
								    dt.Columns.Add("Parent", GetType(String))

									Dim ent As String = String.Empty
									Dim parent As String = String.Empty
									For Each memInfo As MemberInfo In members
										ent = memInfo.Member.Name & "-" & memInfo.Member.Description

										Dim objDimPk As DimPk = BRApi.Finance.Dim.GetDimPk(si, "Entities")
										Dim parentList As List(Of Member) = BRApi.Finance.Members.GetParents(si, objDimPk, memInfo.Member.MemberId, False)
										parent = parentList.Item(0).Name

										dt.Rows.Add(ent, parent)
									Next
									Return dt
								End Using
							End Using
						End If
				End Select

				Return Nothing
			Catch ex As Exception
				Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
			End Try
		End Function
	End Class
End Namespace
