Intercompany Report and Stage Table Questions

  • February 25, 2025
  • 4 replies
  • 0 views

Hi,

Has anyone created an intercompany report by entity?

I'm trying to use the vstagesourceandtargetdata table - is there any documentation with descriptions of the table's columns?

Thanks!



4 replies

T_Kress
OneStream Employee
T_KressOneStream Employee
OneStream Employee
February 25, 2025

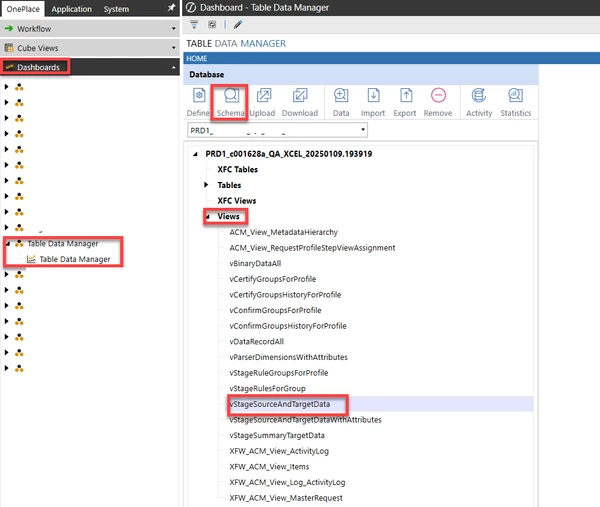

If you load the Solution Exchange tool called Table Data Manager into your app, it will allow you to look at the scheme for all application tables and views.

That should help you:



    C
    cap08Author
    Contributor
    February 26, 2025

    I will definitely use that tool, thanks!

    C
    cap08Author
    Contributor
    February 26, 2025

    This tool is great! Just wish it explained what the column names represented. I can figure out most of them except 'Fak', 'Lb', 'Tv' and 'Fx'.



    T_Kress
    OneStream Employee
    T_KressOneStream Employee
    OneStream Employee
    February 26, 2025

    Lb = the label field at the data source level.  As far as the others I do not know.  Maybe set up an adaptor SQL to pull top 1,000 rows from the view and see if the data in the view helps you understand those columns.

    Here is SQL for a data adaptor, just be sure to limit it to top 1,000 or a particular time or WF name.

    SELECT TOP (1000)
       [Wfk]
      ,[Wsk]
      ,[Wtk]
      ,[Fak]
      ,[Ri]
      ,[Rt]
      ,[Si]
      ,[Lb]
      ,[Tv]
      ,[Et]
      ,[EtT]
      ,[EtR]
      ,[Pr]
      ,[PrT]
      ,[PrR]
      ,[Cn]
      ,[CnT]
      ,[CnR]
      ,[Vw]
      ,[VwT]
      ,[VwR]
      ,[Sn]
      ,[SnT]
      ,[SnR]
      ,[Tm]
      ,[TmT]
      ,[TmR]
      ,[Ac]
      ,[AcT]
      ,[AcR]
      ,[Fw]
      ,[FwT]
      ,[FwR]
      ,[Og]
      ,[OgT]
      ,[OgR]
      ,[Ic]
      ,[IcT]
      ,[IcR]
      ,[U1]
      ,[U1T]
      ,[U1R]
      ,[U2]
      ,[U2T]
      ,[U2R]
      ,[U3]
      ,[U3T]
      ,[U3R]
      ,[U4]
      ,[U4T]
      ,[U4R]
      ,[U5]
      ,[U5T]
      ,[U5R]
      ,[U6]
      ,[U6T]
      ,[U6R]
      ,[U7]
      ,[U7T]
      ,[U7R]
      ,[U8]
      ,[U8T]
      ,[U8R]
      ,[Fs]
      ,[RawAmount]
      ,[ConvertedAmount]
FROM [dbo].[vStageSourceAndTargetDataWithAttributes] WHERE TmT ='|WFTime|'



      H
      OneStream Employee
      HenningOneStream Employee
      OneStream Employee
      February 27, 2025

      Hi, with regards to the other part of your question, how do you mean that exactly, "Has anyone created an intercompany report by entity?"?

      Assuming your legal entities are in the entity dimension, the system default intercompany report is showing the matching by legal entity.

      Or do you mean on a IC transaction basis, which is why you want to look at the stage table? In that case, take a look at the transaction matching solution from OneStream, if that is what you are looking for.
