Cube View row member expansion

Hi,

We have a cube view with 4 levels of Row expansions UD1, UD2, UD3 and UD4 (Currency). We need to add 2 more levels for UD5 and UD6. Is there any way we can have 6 levels of Row expansions in Cube View?

Thanks & Regards,

Madesh K

7 replies

ChristianW
Employee - Advisor
Employee - Advisor
Feb 23, 2022 3:11 PM UTC

Hi Madesh

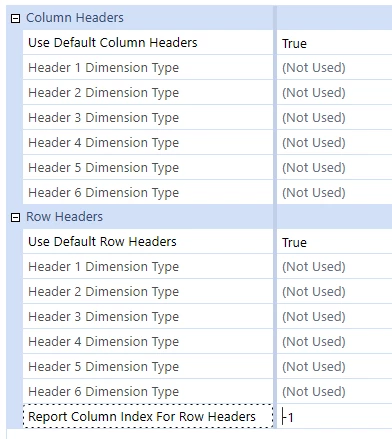

You can use the cubeview Header Overrides section to define up to 6 nested dimensions independent from the nested member expansions:


Cheers

Christian

Member
Feb 24, 2022 2:46 PM UTC

ChristianW, does this allow you to select more than four dimensions on rows. I'm not sure whether that is what OP is looking for. I get that this one shows the header of the other two dimensions in POV.

ChristianW
Employee - Advisor
Employee - Advisor
Feb 25, 2022 12:19 PM UTC

For every level on rows (4) or columns (2) you can specify more than one dimension type, you are not limited to the selected one. But only the selected dimension type is dynamic and can be used with list functions like .base or .tree. As a work around, you can create a xfbr function that creates comma separated lists of concatenated members in a scripts and with this, you can extend the row level limit beyond 4. With the Header overrides, you can show these members in the header independent from the selected dimension types in the rows or columns. If you need more than 6, you can works with name().

Member
Feb 24, 2022 2:55 PM UTC

The question still is why such a large cube view is required. OP, maybe those are pages, and you can make the user use the page dimension to select one member at a time.
