Annotation - Cell comments, attachments in Cubeview and Quickview

  • July 19, 2023
  • 2 replies
  • 0 views

When a comment is added to a cell or file is attached to a cell, there is not mark on that cell for other users to know about the comment or attachment. Is there a way to highlight the cell with tick mark or anything else for the user to realize there is a comment? When view annotation is used to add the comment, it is not obvious to the user that there is a comment on a specific cell as there is not red tick on the cell. Appreciate your help!

      2 replies

      N
      NickHymes
      Newcomer
      July 19, 2023

      Alternatively, you could a pull cube view with an annotation column to apply/read comments that are posted.

        N
        NickHymes
        Newcomer
        July 19, 2023

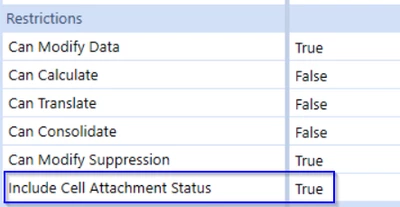

        I looked into this a little more. You need to make sure on your cube views you have this setting turned on to TRUE

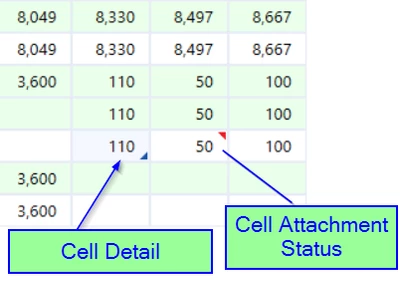

        After that, you should see an "orange triangle" indicating that there is a cell attachment.




          H
          HarvAuthor
          Newcomer
          July 19, 2023

          Thanks Nick! This was helpful. Is there a way we can see this red mark in quick view as well?

            J
            Jones
            Contributor
            December 20, 2023

            Hey, hope its ok to add a followup question to this thread on the same topic.

            I have added Cell Attachment Status to "true" and adding comment with a red marking works fine in my adjustment view in my cubeview.

            However, what I would like to archive is to also get the marking to be shown on my other "total" view. The comment do "roll up" in the data attachment view for selected data unit. But the red marking is not shown.

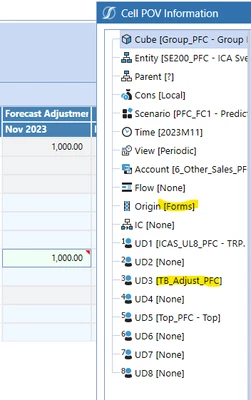

            Where I put my comment and red marking appear:

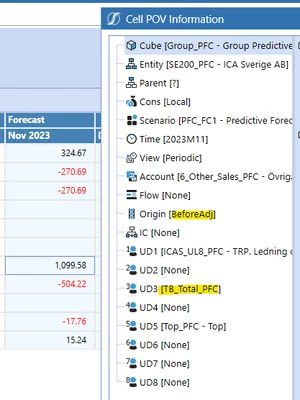

            Parent members in a different view with no marking.

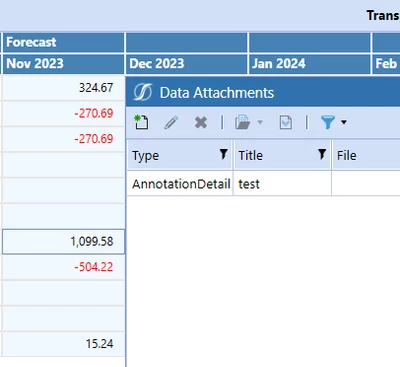

            On parent level, If i select "Data attachment for selected Data Unit" is showing the comment. But no red mark.


            thanks in advance
