WebServer Cannot Access AppServer

  • March 22, 2023
  • 3 replies
  • 0 views

Recent installation of 7.3.1.

1 WebServer and 3 AppServers.

When I log on to the WebServer and attempt to hit "http://localhost:50001/OneStreamWeb/OneStreamXF.aspx, I get an error that says 'Unable to access application server using address "http://[AppServer]:50002/OneStreamApp." '

If I open a browser on my webserver and navigate to http://[AppServer]:50002/OneStreamApp/svc/Data.svc, I get the expected result ("You have created a service").

I was also able to create an application database from my app server, so I know the connection to the db is correct.

How do I figure out what is missing?

Thank you in advance for any help.



Ray



3 replies

N
NicolasArgente
Veteran
March 23, 2023

Hi Raymond-Kelly,
Did you check in IIS that all the application pools have started?
Was it an upgrade what you did? Did you open your firewall ports? During testing time you could disable the firewall no?
After checking that, what I would suggest is that  you go back to the OS Server Configuration and you redo all the install/upgrade steps where you assign the XFAppServerConfig and XFWebServerConfig. I mean the ASP and webserver config files.
Cheers

R
RaymondKellyAuthor
Newcomer
March 23, 2023

Nicolas,

Thank you for the reply.

Yes.  All of the application pools have started.  I also tried stopping them all and restarting them.

There are no firewall issues.  I can ping all servers.  If firewall was an issue, I wouldn't get "You have created a service" when I attempt to access OneStreamApp.

I don't want to reinstall OneStream.

Are there any logs that I can look at to determine where the issue is coming from?

I believe traffic should flow from OneStreamWeb, to OneStreamApp, to SQL Server.

Is there a way to test access to SQL Server from OneStreamWeb?

Is there a way to test access to SQL Server from OneStreamApp?

Thanks again.

N
NicolasArgente
Veteran
March 24, 2023

Hey Raymond!

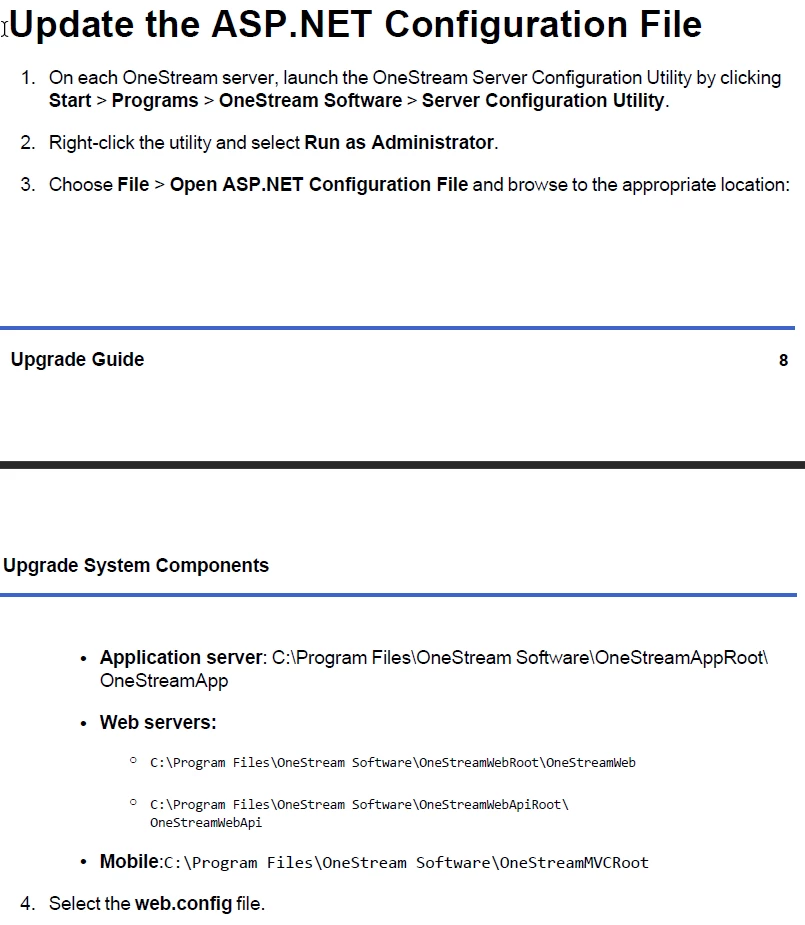

Sorry, I did not say to reinstall OneStream but only to review the pointers of the web.config files for each servers. Look at the extract from the Upgrade_Guide below. I would look into that direction.
Regarding the logs, if you look int the webconfig of the webserver you will see the option to activate WebServer detailed Error Logging. (True False)






N
NicolasArgente
Veteran
March 25, 2023

Nice job. That is exactly what i was pointing too ; The config files. Please keep us up to date! Good luck.

R
RaymondKellyAuthor
Newcomer
April 13, 2023

I believe this was a permissions issue.  When I changed the identity of the AppPool in IIS to a service account that was a little more "open", things worked properly.
