Ho to extract a hierarchy for any dimension in Level format in OneStream?

  • September 14, 2020
  • 3 replies
  • 0 views
Originally posted by Vignesh Mohan

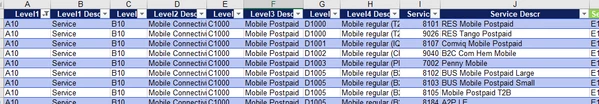

Hi, How can we extract the hierarchy of any dimension in an excel in a Level based format starting from top most level to the bottom most level for every base member ? Basically I do not want a Parent-Child format extract. Please find the attachments for the sample screen shot.

3 replies

Member
January 4, 2023

Any updates on this request?

Newcomer
April 24, 2023

Bump. Would also like to know if there has been a solution built for this export.

Contributor
July 19, 2024

I wrote  a code from my end for my Account dimensions (you can replicate for others)

Imports System
Imports System.Collections.Generic
Imports System.Data
Imports System.Data.Common
Imports System.Globalization
Imports System.IO
Imports System.Linq
Imports Microsoft.VisualBasic
Imports OneStream.Finance.Database
Imports OneStream.Finance.Engine
Imports OneStream.Shared.Common
Imports OneStream.Shared.Database
Imports OneStream.Shared.Engine
Imports OneStream.Shared.Wcf
Imports OneStream.Stage.Database
Imports OneStream.Stage.Engine

Namespace OneStream.BusinessRule.DashboardDataSet.AccountHierarchyTable
	Public Class MainClass
		Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As DashboardDataSetArgs) As Object
			Try
				Select Case args.FunctionType


					Case Is = DashboardDataSetFunctionType.GetDataSet

						If args.DataSetName.XFEqualsIgnoreCase("GetAccountStructure") Then


								Dim Acct As String = args.NameValuePairs.XFGetValue("Acct")  'Get Top Parent


								Dim Sql As String = "SELECT Member.Name As L1,Member.Description As Description_L1 FROM Relationship RIGHT OUTER JOIN Member ON Relationship.DimTypeId = Member.DimTypeId AND Relationship.ChildID = Member.MemberId WHERE (Member.DimTypeId = 5) AND Member.DimId IN (SELECT DimId FROM Dim WHERE Name = 'DIMNAME_Accounts') AND (Relationship.ParentId = '-2') and Member.Name = '"& Acct &"' ORDER BY Member.Name"


								Dim Dt As New DataTable

								Using AppCon As DbConnInfo = BRApi.Database.CreateApplicationDbConnInfo(si)

									dt = BRApi.Database.ExecuteSql(AppCon,Sql,True)

								End Using


								Dim i As Integer = 1
								Dim conditionMet As Boolean = False

								Dim DataTable As New DataTable

								DataTable.Columns.Add("L1")

								DataTable.Columns.Add("Description_L1")

								Dim DelRows As New List(Of DataRow)()  'NIK

								While Not conditionMet

									Dim rowsToAdd As New List(Of DataRow)()


									For Each Dr As DataRow In Dt.Rows

										Dim ColName As String = "L" & i.ToString

										If dr(ColName).ToString = String.Empty Then
											Continue For
										End If

										Dim ChildList As List(Of Member) = Brapi.Finance.Members.GetChildren(si,Brapi.Finance.Dim.GetDimPk(si,"DIMNAME_Accounts"),Brapi.Finance.Members.GetMemberId(si,Dimtypeid.Account,dr(ColName).ToString))

										If ChildList.Count > 0 Then

											For Each Child As Member In ChildList



												Dim DataTBRow As DataRow = DataTable.newRow


												For Z As Integer = 1 To i

													DataTBRow("L" & Z.ToString) = Dr("L" & Z.ToString)
													DataTBRow("Description_L" & Z.ToString) = Dr("Description_L" & Z.ToString)


												Next

												If Not dataTable.Columns.Contains("L" & (i+1).ToString) Then

													DataTable.Columns.Add("L" & (i+1).ToString)
													DataTable.Columns.Add("Description_L" & (i+1).ToString)

												End If

												DataTBRow("L" & (i+1).ToString) = Child.Name
												DataTBRow("Description_L" & (i+1).ToString) = Child.Description


												If BRApi.Finance.Members.HasChildren(si,Brapi.Finance.Dim.GetDimPk(si,"DIMNAME_Accounts"),Brapi.Finance.Members.GetMemberId(si,Dimtypeid.Account,Child.Name)) Then 'NIK

													DelRows.Add(DataTBRow)

												End If

												rowsToAdd.Add(DataTBRow)

												conditionMet = False

											Next

										Else

											Continue For

										End If

									Next


									If Not dataTable.Columns.Contains( "L" & (i+1).ToString) Then

										conditionMet = True

									End If

									i = i + 1


									For Each row In rowsToAdd
									    DataTable.Rows.Add(row)
									Next


									dt = DataTable


								End While
'								Next



								Dim LNum As Integer = 0

								For Each Dc As DataColumn In Dt.Columns

									If Dc.ColumnName.Contains("L") And Not Dc.ColumnName.Contains("Description_L")Then

										If CInt(StringHelper.ReplaceString(Dc.ColumnName,"L","",True)) > 0 Then

											LNum = CInt(StringHelper.ReplaceString(Dc.ColumnName,"L","",True))

										End If

									End If

								Next

								For Each rowToRemove In DelRows
								    Dt.Rows.Remove(rowToRemove)
								Next



								For Each Dr1 As DataRow In Dt.Rows

									For L As Integer = LNum To 1 Step -1

										Dim ClmnName As String = "L" & L

										If L = LNum And Not (Dr1.IsNull(ClmnName) OrElse Dr1(ClmnName).ToString() = String.Empty) Then


											Exit For

										Else If Dr1.IsNull(ClmnName) OrElse Dr1(ClmnName).ToString() = String.Empty Then



											Continue For

										Else
											Dr1("L" & LNum) = Dr1(ClmnName).ToString()
											Dr1("Description_L" & LNum) = Dr1("Description_" & ClmnName).ToString()
											Dr1(ClmnName) = String.Empty
											Dr1("Description_" & ClmnName) = String.Empty


											Exit For

										End If

									Next

								Next

								Dt.Columns("L" & LNum).ColumnName = "Base Account"
								Dt.Columns("Description_L" & LNum).ColumnName = "Base Account Description"


								Return Dt

						End If
				End Select

				Return Nothing
			Catch ex As Exception
				Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
			End Try
		End Function
	End Class
End Namespace



Newcomer
March 3, 2025

Nikpowar97 - I'm trying to replicate this for Entity dimension and not getting the result table. Any insight would be appreciated, if you could share.

Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As DashboardDataSetArgs) As Object
Try
Select Case args.FunctionType

Case Is = DashboardDataSetFunctionType.GetDataSetNames
'Dim names As New List(Of String)()
'names.Add("MyDataSet")
'Return names
'Return GetDataSetNames("Getfunctionalhierarchy")
'Case Is = DashboardDataSetFunctionType.GetDataSet
'If args.DataSetName.XFEqualsIgnoreCase("MyDataSet") Then


Case Is = DashboardDataSetFunctionType.GetDataSet

If args.DataSetName.XFEqualsIgnoreCase("Getfunctionalhierarchy") Then


Dim Center As String = args.NameValuePairs.XFGetValue("Functional_Reporting")  'Get Top Parent


Dim Sql As String = "SELECT Member.Name As L1, Member.Description As Description_L1
FROM Relationship RIGHT OUTER JOIN Member ON Relationship.DimTypeId = Member.DimTypeId AND Relationship.ChildID = Member.MemberId
WHERE (Member.DimTypeId = 0) AND Member.DimId IN (SELECT DimId FROM Dim WHERE Name = 'OMFEntityCenter') AND (Relationship.parentid = '-2') and Member.Name = '"& Center &"'
ORDER BY Member.Name"


Dim Dt As New DataTable

Using AppCon As DbConnInfo = BRApi.Database.CreateApplicationDbConnInfo(si)

dt = BRApi.Database.ExecuteSql(AppCon,Sql,True)

End Using


Dim i As Integer = 1
Dim conditionMet As Boolean = False

Dim DataTable As New DataTable

DataTable.Columns.Add("L1")

DataTable.Columns.Add("Description_L1")

Dim DelRows As New List(Of DataRow)()  'NIK

While Not conditionMet

Dim rowsToAdd As New List(Of DataRow)()


For Each Dr As DataRow In Dt.Rows

Dim ColName As String = "L" & i.ToString

If dr(ColName).ToString = String.Empty Then
Continue For
End If

Dim ChildList As List(Of Member) = Brapi.Finance.Members.GetChildren(si,Brapi.Finance.Dim.GetDimPk(si,"OMFEntityCenter"),Brapi.Finance.Members.GetMemberId(si,dimtypeid.Entity,dr(ColName).ToString))

If ChildList.Count > 0 Then

For Each Child As Member In ChildList


Dim DataTBRow As DataRow = DataTable.newRow


For Z As Integer = 1 To i

DataTBRow("L" & Z.ToString) = Dr("L" & Z.ToString)
DataTBRow("Description_L" & Z.ToString) = Dr("Description_L" & Z.ToString)


Next

If Not dataTable.Columns.Contains("L" & (i+1).ToString) Then

DataTable.Columns.Add("L" & (i+1).ToString)
DataTable.Columns.Add("Description_L" & (i+1).ToString)

End If

DataTBRow("L" & (i+1).ToString) = Child.Name
DataTBRow("Description_L" & (i+1).ToString) = Child.Description


If BRApi.Finance.Members.HasChildren(si,Brapi.Finance.Dim.GetDimPk(si,"OMFEntityCenter"),Brapi.Finance.Members.GetMemberId(si,dimtypeid.Entity,Child.Name)) Then 'NIK

DelRows.Add(DataTBRow)

End If

rowsToAdd.Add(DataTBRow)

conditionMet = False

Next

Else

Continue For

End If

Next


If Not dataTable.Columns.Contains( "L" & (i+1).ToString) Then

conditionMet = True

End If

i = i + 1


For Each row In rowsToAdd
    DataTable.Rows.Add(row)
Next


dt = DataTable


End While
' Next



Dim LNum As Integer = 0

For Each Dc As DataColumn In Dt.Columns

If Dc.ColumnName.Contains("L") And Not Dc.ColumnName.Contains("Description_L")Then

If CInt(StringHelper.ReplaceString(Dc.ColumnName,"L","",True)) > 0 Then

LNum = CInt(StringHelper.ReplaceString(Dc.ColumnName,"L","",True))

End If

End If

Next

For Each rowToRemove In DelRows
    Dt.Rows.Remove(rowToRemove)
Next



For Each Dr1 As DataRow In Dt.Rows

For L As Integer = LNum To 1 Step -1

Dim ClmnName As String = "L" & L

If L = LNum And Not (Dr1.IsNull(ClmnName) OrElse Dr1(ClmnName).ToString() = String.Empty) Then


Exit For

Else If Dr1.IsNull(ClmnName) OrElse Dr1(ClmnName).ToString() = String.Empty Then



Continue For

Else
Dr1("L" & LNum) = Dr1(ClmnName).ToString()
Dr1("Description_L" & LNum) = Dr1("Description_" & ClmnName).ToString()
Dr1(ClmnName) = String.Empty
Dr1("Description_" & ClmnName) = String.Empty


Exit For

End If

Next

Next

Dt.Columns("L" & LNum).ColumnName = "Base Center"
Dt.Columns("Description_L" & LNum).ColumnName = "Base Center Description"


Return Dt

End If
End Select


Return Nothing
Catch ex As Exception
Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
End Try
End Function
